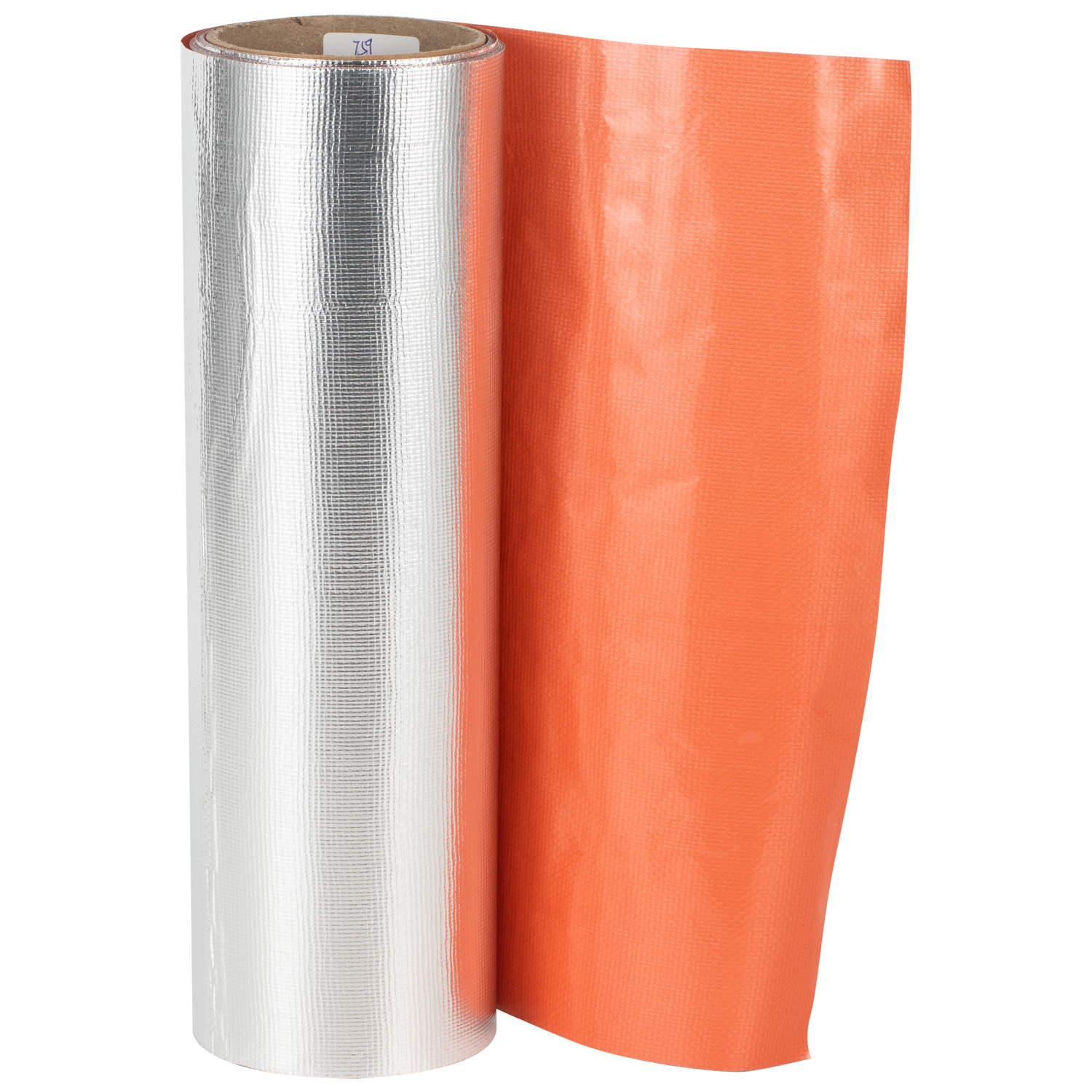

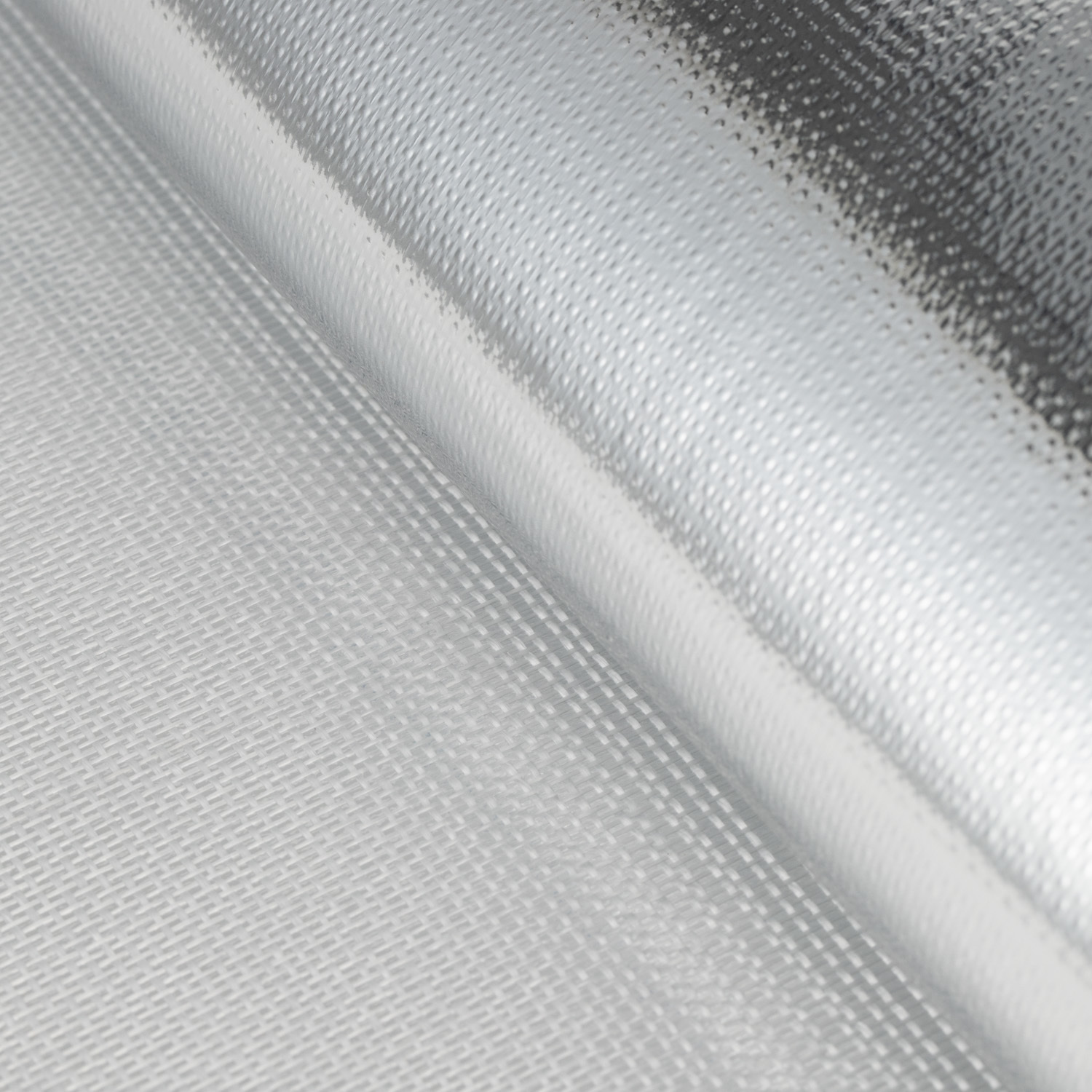

PT-75 Aluminum Foil Fiberglass Cloth
Fiberglass weaves are available in various weave styles such as plain, twill, cross-twill, satin and plaid. Therefore, E glass and C glass woven fabrics are widely used in transportation, chemical industry, construction engineering, heat insulation and sound absorption, fire protection and environmental protection. AL-75 is a plain weave fiberglass fabric, an industrial textile made from trough heating furnace glass fiber yarn.
Aluminum Foil Thickness: 7/14/18/25/38/50 microns
Coating: Aluminum Film/ Flame Retardant Aluminum Film
Fabric Pattern: Plain Weave
Fiberglass Cloth Weight: 75 g/m²
Thickness: 0.12 mm
Width: 1 m, 1.2 m, 1.3 m (customizable)
Length: 50 m, 100 m (customizable)
Features
* Excellent temperature resistance, minimum -70℃, maximum 280℃;
* High strength, soft and elastic, can be cut and processed;
* Excellent chemical resistance; oil resistance, acid resistance, water resistance;
* Anti-aging and weather resistance, maintaining stable physical properties for a long time under harsh climate conditions;
* High insulation level, high voltage capability.
Data Sheet
| item No. | thickness of foil | fiberglass weight | thickness(mm) | width(m) | weave |
| PT-75 | 7/14/18/25/38/50 aluminized film F.R alum.foil |
75g/㎡ | 0.12 | 1/1.2/1.3 | plain |
| PT-85 | 85g/㎡ | 0.12 | 1/1.2/1.3 | plain | |
| PT-95 | 95g/㎡ | 0.14 | 1/1.2/1.3 | plain | |
| PT-110 | 110g/㎡ | 0.15 | 1/1.2/1.3 | plain | |
| More specifications support customization. | |||||
Application
