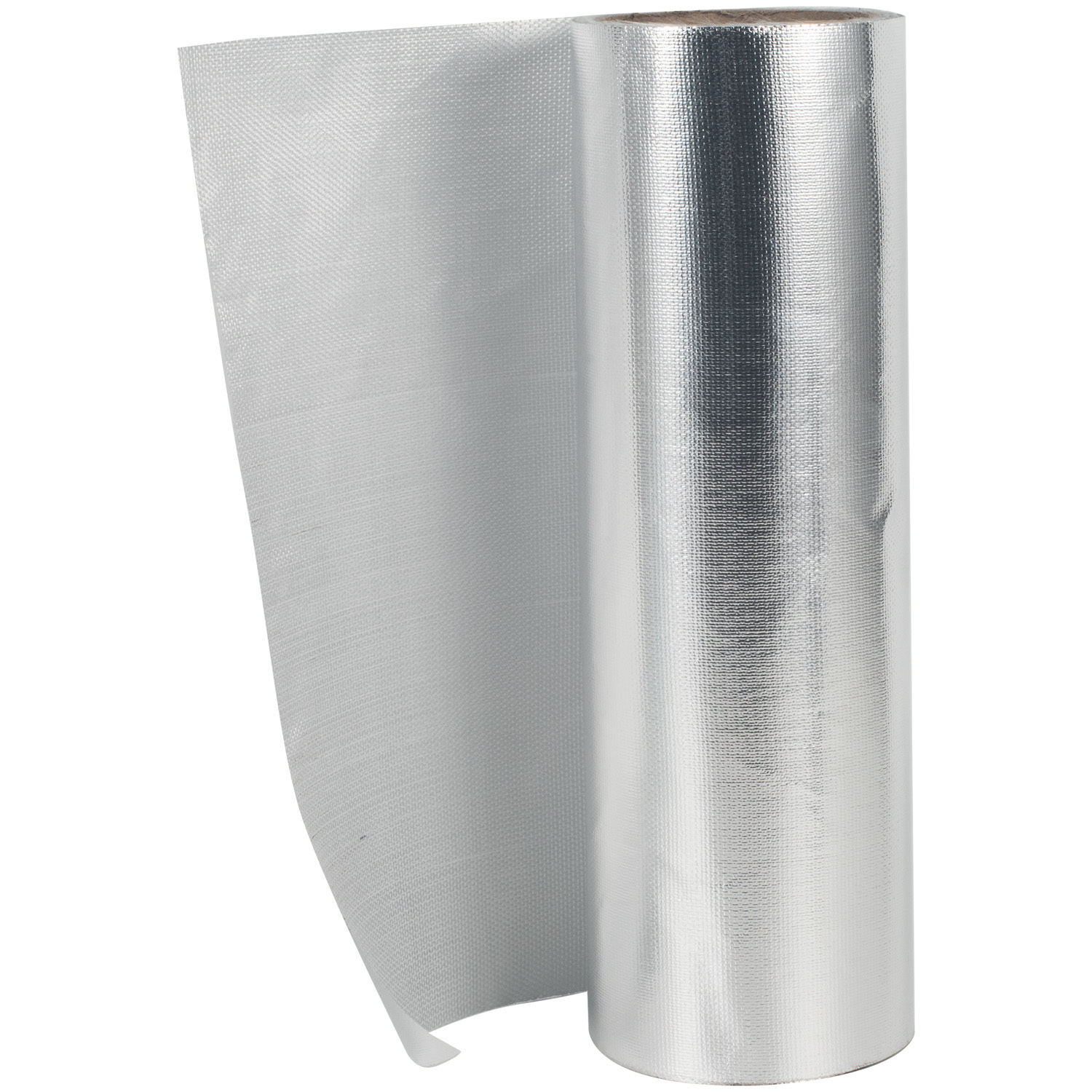

PT-85 Flame Retardant Insulation Aluminum Foil Fiberglass Cloth
Aluminum foil fiberglass cloth (aluminum foil cloth) is a new type of thermal insulation material formed by combining aluminum foil and fiberglass cloth through a special process. It has the flatness and high reflectivity of aluminum foil and the strong pulling force of glass fiber cloth.
Performance: fire protection, heat preservation, heat insulation, anti-corrosion, corrosion resistance, waterproof, conductive, strong reflectivity, strong covering ability, good breathability, etc.;
Scope of use: It can be combined with rock wool, glass wool, rubber and plastic and other insulation materials for building exterior walls, steel structure roofs, indoor decoration interior walls, pipe outer wrapping, color steel roof insulation, long-distance heat transmission network, etc.
Foil Thickness: 7/14/18/25/38/50 microns
Coating: Aluminum Film/Flame Retardant Aluminum Film
Weave Pattern: Plain Weave
Fiberglass Cloth Weight: 85 g/m²
Thickness: 0.12 mm
Width: 1 m, 1.2 m, 1.3 m (Customizable)
Length: 50 m, 100 m (Customizable)
Features
* sun protection
* waterproof
* wind resistant
* fire resistant
* tear resistant
* anti aging
* high reflection
Data parameters
| item No. | thickness of foil | fiberglass weight | thickness(mm) | width(m) | weave |
| PT-75 | 7/14/18/25/38/50 aluminized film F.R alum.foil |
75g/㎡ | 0.12 | 1/1.2/1.3 | plain |
| PT-85 | 85g/㎡ | 0.12 | 1/1.2/1.3 | plain | |
| PT-95 | 95g/㎡ | 0.14 | 1/1.2/1.3 | plain | |
| PT-110 | 110g/㎡ | 0.15 | 1/1.2/1.3 | plain | |
| More specifications support customization. | |||||
Application
