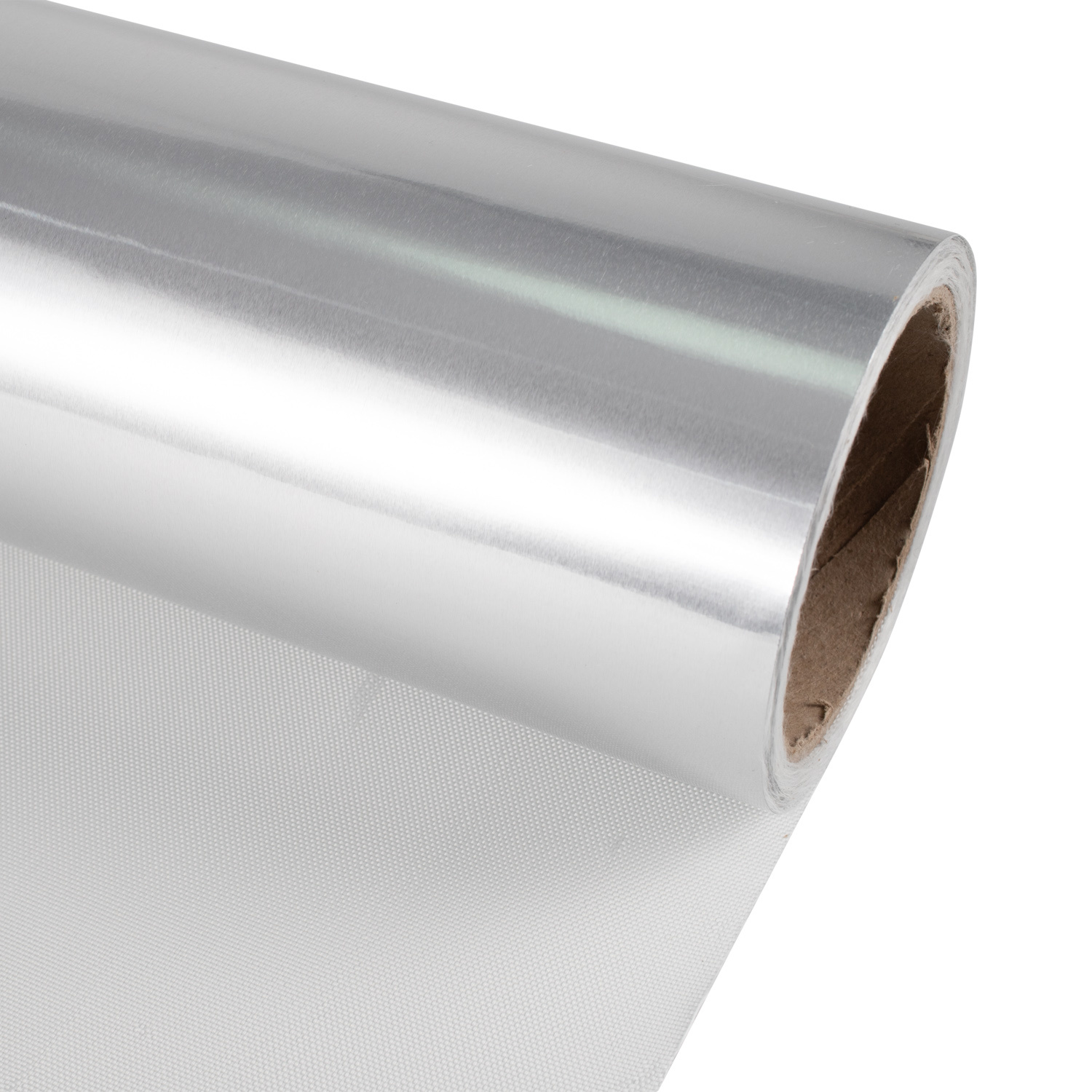

PT-FW600 Tensile insulation fiberglass cloth
Aluminum foil is laminated onto continuous fine filaments or textured E-glass cloth to prevent abrasion during cutting, creating a heat-resistant and reflective material suitable for preventing radiant heat. It also features a self-adhesive backing, allowing for cutting into various widths and sheet sizes. Under optimal conditions, the adhesive rated temperature for laminating the aluminum foil onto the glass cloth is 150°C (economical type) or 180°C (IMO certified), while the rated temperature for the E-glass cloth is 550°C.
Aluminum Foil Thickness: 18/25 microns
Coating: Aluminum Foil/Aluminum Film
Fiberglass Cloth Type: Grid
Fiberglass Cloth Weight: 600 g/m²
Width: 1m, 1.2m, 1.5m (Customizable)
Length: 50m, 100m (Customizable)
Features
The unique advanced composite technology of aluminum foil fiberglass cloth utilizes glass fiber as the base fabric, employing a special type of composite material for lamination. The composite aluminum foil features a flat surface, high reflectivity, both longitudinal and transverse tensile strength, and air tightness. It possesses characteristics such as impermeability, excellent sealing properties, and strong weather resistance.
Data parameters
| PT-7628 | PT-3732 | PT-3784 | PT-84215 | PT-HT2025 | PT-FW600 | |
| Weave | plain | 3×1 twill | 8 HS satin | plain | plain | even grain check |
| Warp(per/cm) | 17.3 | 18 | 18 | 8 | 8 | 15 |
| Weft(per/cm) | 12.5 | 13 | 13 | 6 | 5.7 | 15 |
| Weight(g/㎡) | 200 | 430 | 880 | 300 | 610 | 600 |
| Thickness(mm) | 0.2 | 0.43 | 0.9 | 0.38 | 0.75 | 0.55 |
| Coating | Aluminum foil/Metalized film | |||||
| Coating Thickness(micron) | 7/18/25 | |||||
| Width(m) | 1/1.2/1.5 | |||||
| Service temperature | fiberglass:550℃/while mucilage:300℃ | |||||
| More specifications support customization. | ||||||
