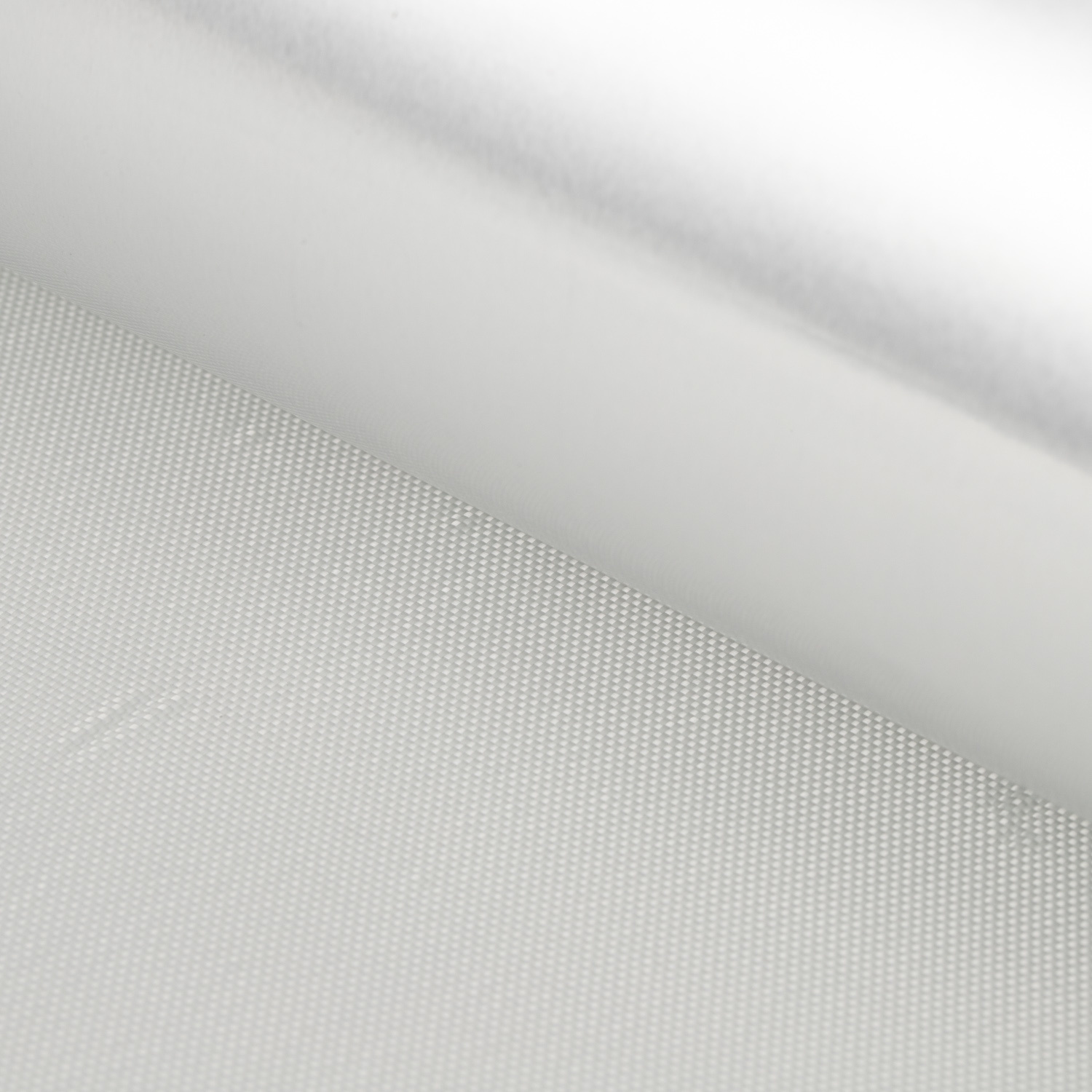

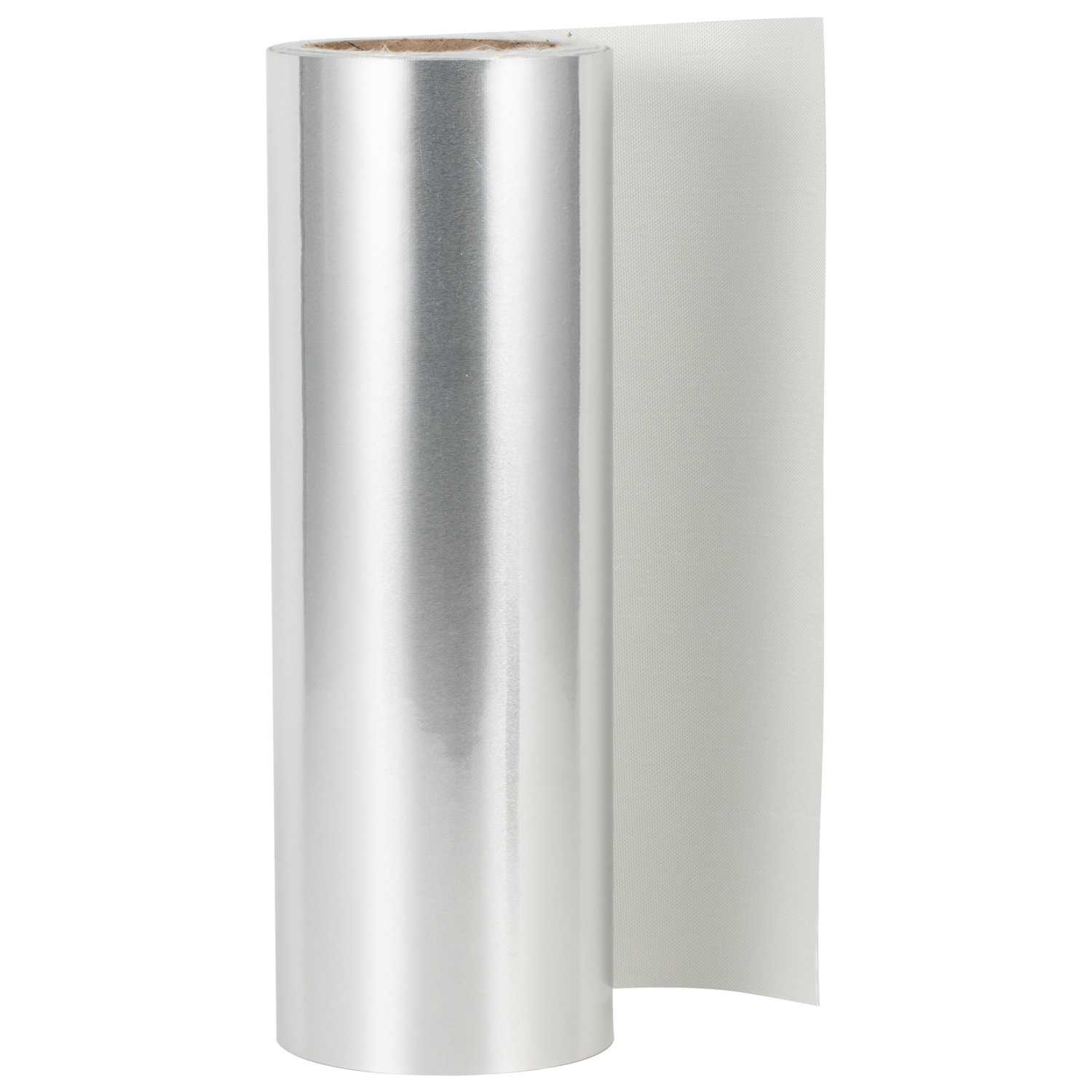

PT-7628 High sealing aluminum foil fiberglass cloth
Aluminum Foil Fiberglass Cloth is typically composed of a combination of aluminum foil and fiberglass fabric.Aluminum Foil: It comes in various thicknesses such as 7um, 18um, 25um, and can also be combined with materials like aluminum film, flame-retardant aluminum film, copper foil, etc.Fiberglass Fabric: The thickness and weight of the fiberglass fabric vary, with standard widths being 1000mm, 1200mm, 1500mm ±15mm (custom cutting available upon request). The length typically ranges from 100m to 250m and can also be cut according to customer requirements.
Thickness: 7/18/25 microns
Coating: Aluminum Foil/Aluminum Film
Fiberglass Cloth Type: Plain Weave
Fiberglass Cloth Weight: 200 g/m²
Width: 1m, 1.2m, 1.5m (Customizable)
Length: 50m, 100m (Customizable)
Features
* Smooth surface and high light reflectivity;
* Clear texture and high tensile strength;
* Wear-resistant and anti-slip;
* Waterproof, moisture-proof, fireproof, corrosion-resistant, etc.
Data parameters
| PT-7628 | PT-3732 | PT-3784 | PT-84215 | PT-HT2025 | PT-FW600 | |
| Weave | plain | 3×1 twill | 8 HS satin | plain | plain | even grain check |
| Warp(per/cm) | 17.3 | 18 | 18 | 8 | 8 | 15 |
| Weft(per/cm) | 12.5 | 13 | 13 | 6 | 5.7 | 15 |
| Weight(g/㎡) | 200 | 430 | 880 | 300 | 610 | 600 |
| Thickness(mm) | 0.2 | 0.43 | 0.9 | 0.38 | 0.75 | 0.55 |
| Coating | Aluminum foil/Metalized film | |||||
| Coating Thickness(micron) | 7/18/25 | |||||
| Width(m) | 1/1.2/1.5 | |||||
| Service temperature | fiberglass:550℃/while mucilage:300℃ | |||||
| More specifications support customization. | ||||||
